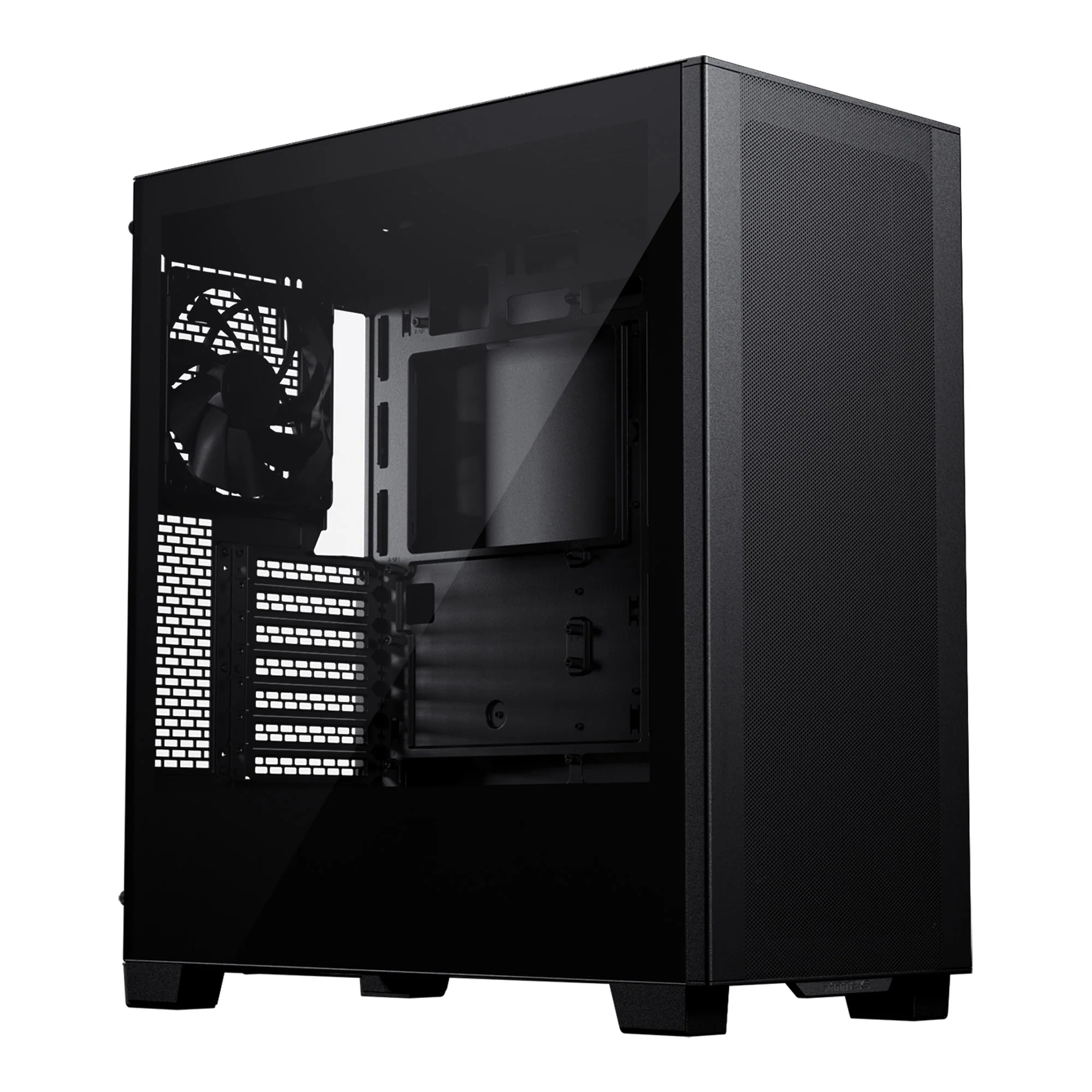

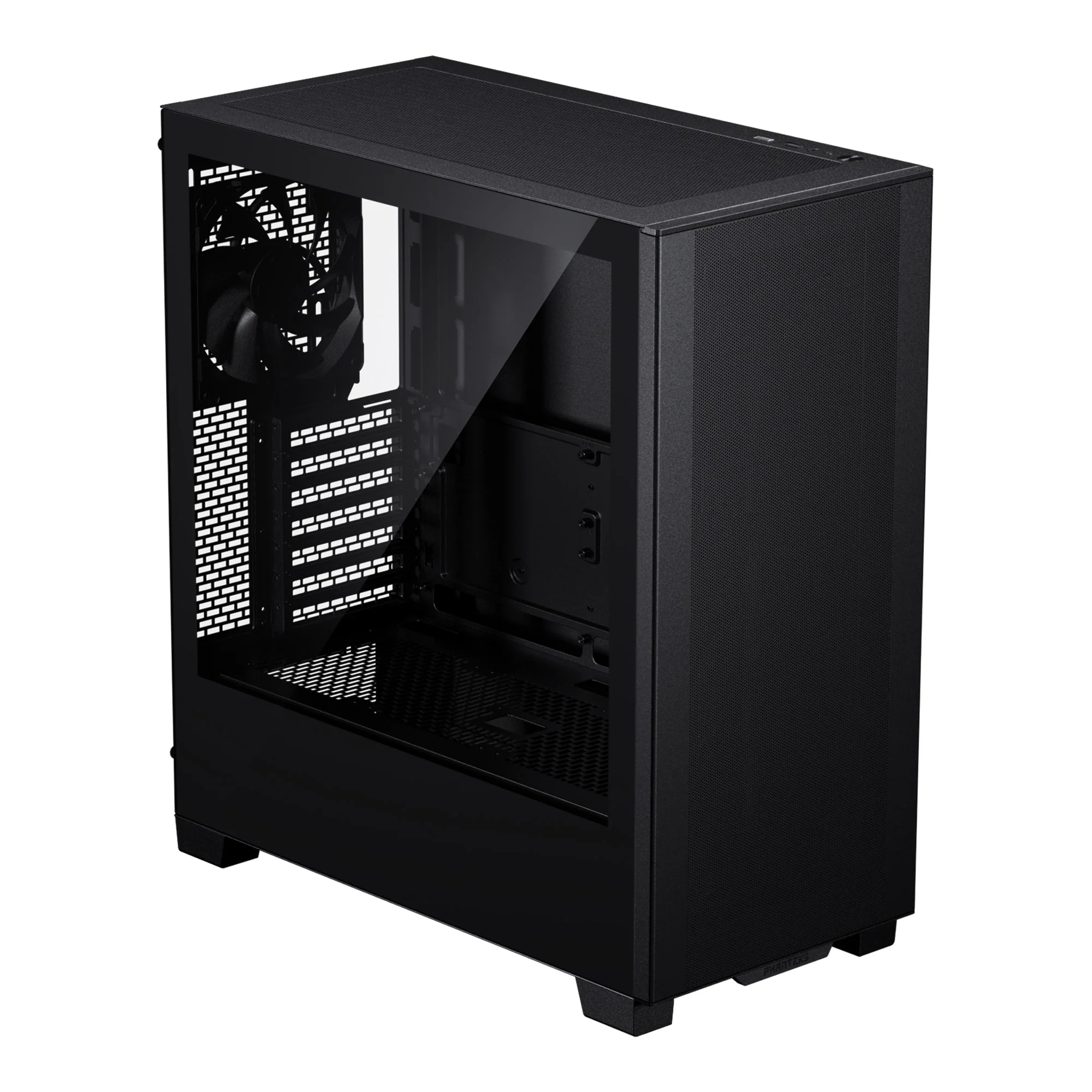

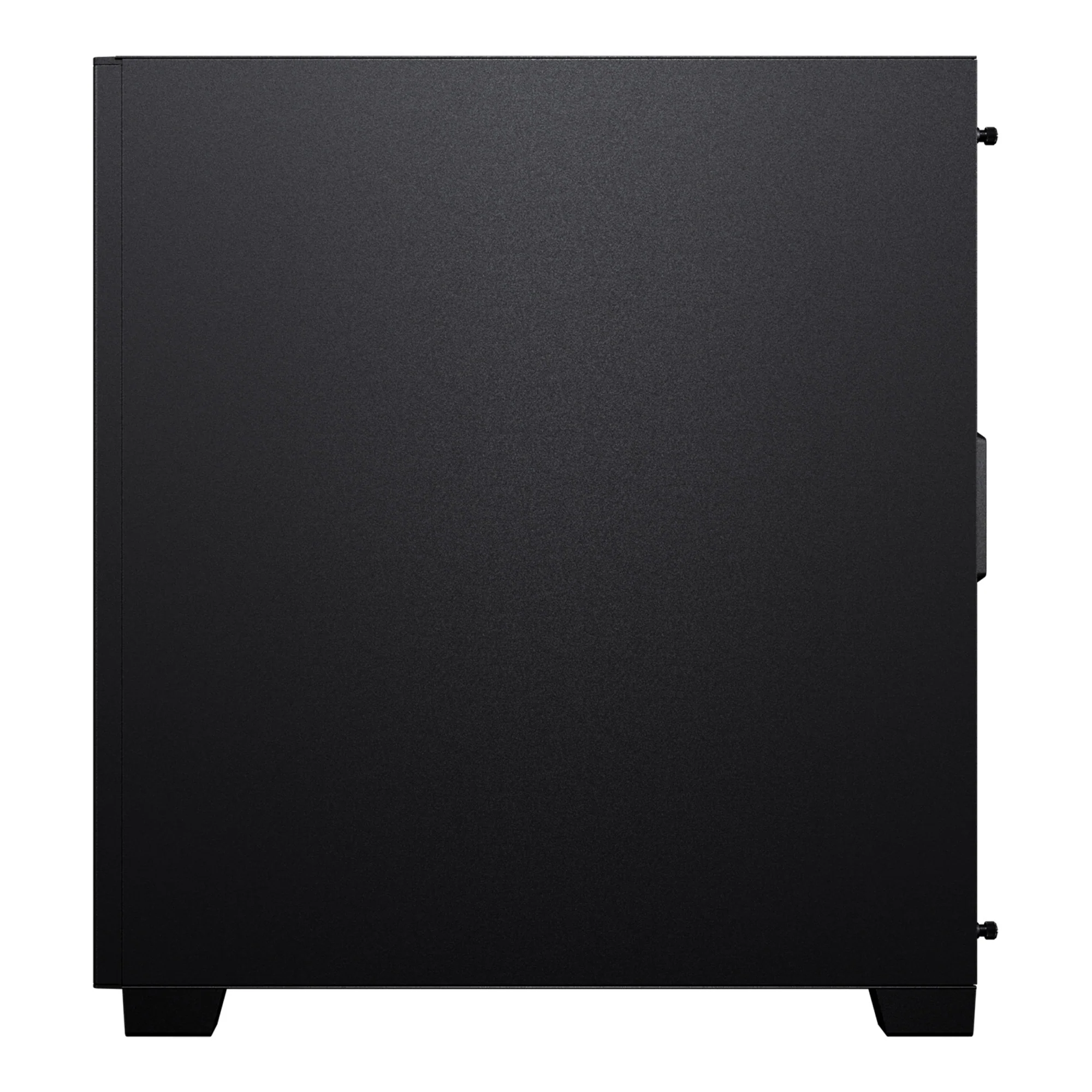

Phanteks XT Pro Black 

With new hardware releases demanding more cooling capacity and internal space, the XT-series is designed to deliver just that and it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling. 

• Support for the latest rear-side connector mainboards

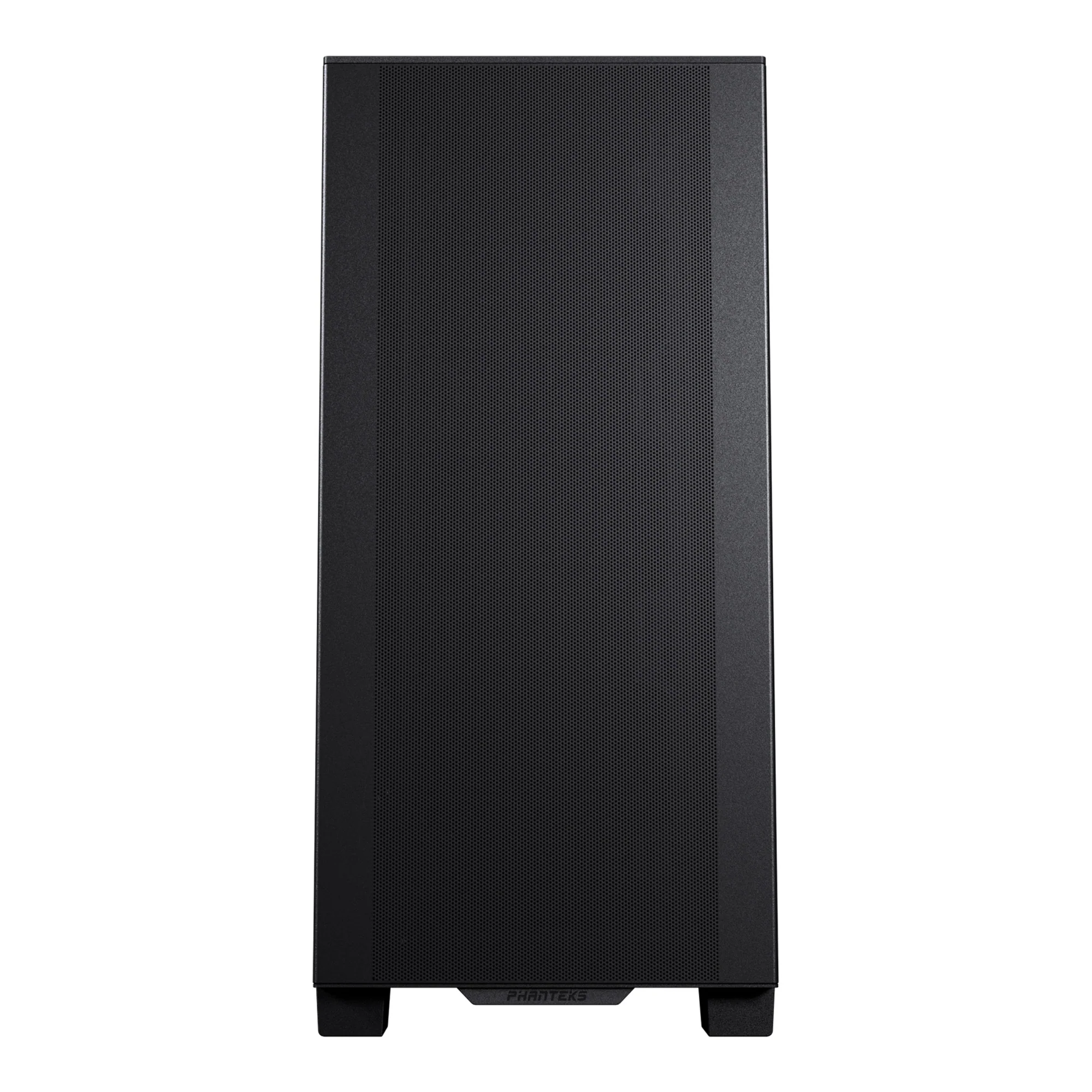

• Ultra-fine Performance mesh front panel and top dust filter
• Support up to 10x 120mm or 6x 140mm and 3x 120mm fan positions
• Dedicated 360 radiator support in the top without restrictions
• Support for the largest graphics cards without compromise

Case Specifications
Dimension	450 x 230 x 500 mm | 17.7×9.05×19.68 in
Form Factor	Mid-Tower
Material(s)	Steel Chassis, Tempered Glass Window, ABS Plastic
Mainboard Support	ATX, Micro-ATX, Mini-ITX, E-ATX (Up to 280mm wide)
Rear Connect Motherboard	ATX

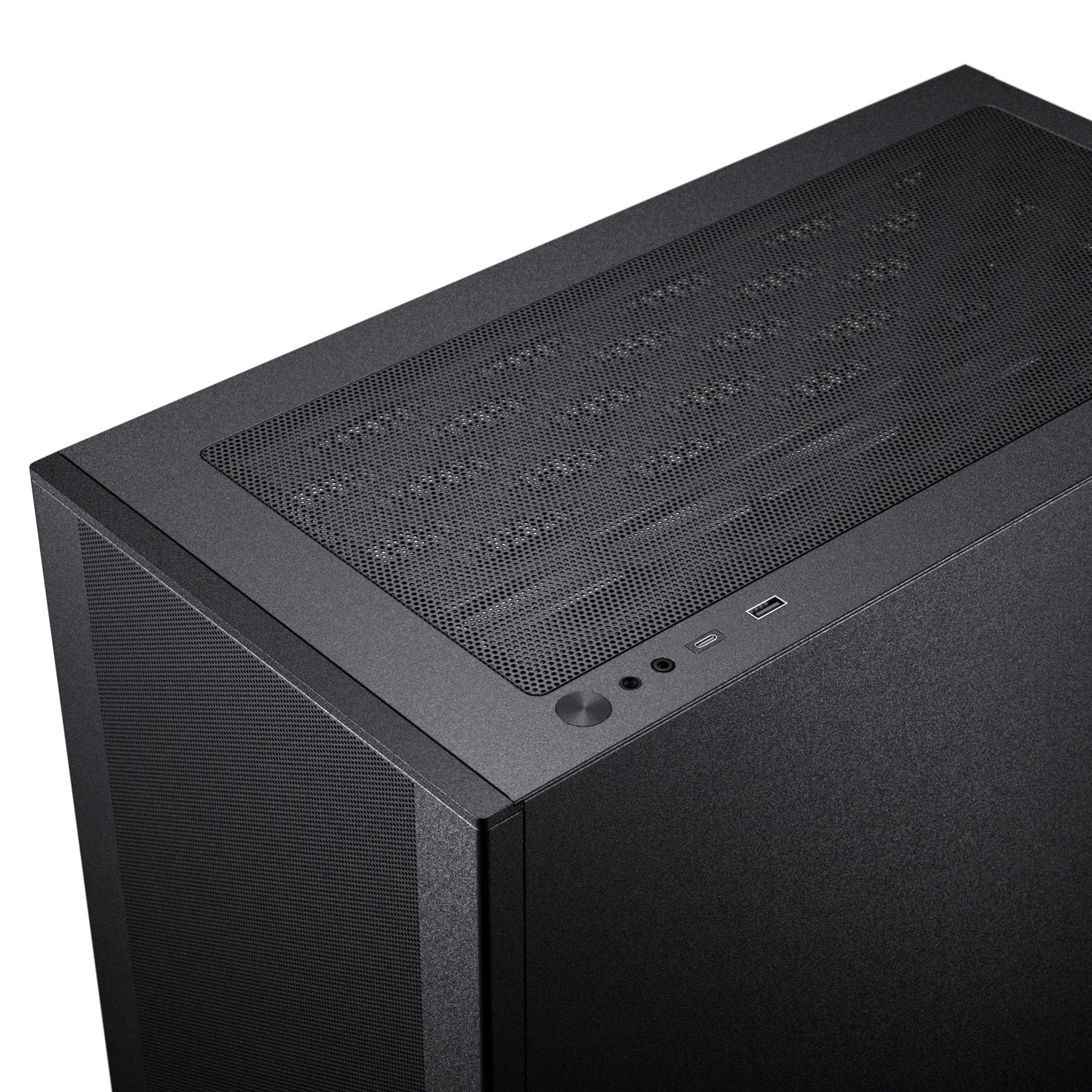

Front I/O	1x USB 3.0, 1x USB-C 3.0, Microphone/Headphone Combo, Power Button, Reset Button
Connectors	Front IO, HD-Audio, USB 3.0
Expansion & Drive Bays
Expansion Slots	7
Vertical GPU Support	Yes, with optional bracket PH-PGPUKT5.0
Internal 3.5”	2x (if 0x SSD installed)
Internal 2.5”	2x (if 1x HDD installed)
Cooling	120mm (Fan)	140mm (Fan)
Top	3x	2x
Front	3x	3x
Rear	1x	1x
Mid-plate	3x	-
Liquid Cooling	120mm (Radiator)	140mm (Radiator)
Top	Up to 360	-
Front	Up to 240	-
Rear	120	-
Bottom	-	-
Clearance
Graphic Card Length	415mm | 16.33in
CPU Cooler Height	184mm | 7.24in
PSU Length	270mm | 10.62in
Top Radiator	415 x 138 x 60mm | 16.33 x 5.43 x 2.36in
Front Radiator	170 x 132mm | 6.69 x 5.19in
